In 3D modeling and rendering, adding realistic surface details can transform a basic model into a compelling piece of art. One of the most commonly sought-after effects is the weathered, worn look of chipped paint revealing underlying materials. This detail authenticates aged machinery, abandoned buildings, or vintage vehicles. The Morphic Studio shares information about creating a fully Procedural Chipped Paint Material in Blender. This allows you to achieve professional-quality results while maintaining complete control over every aspect of the effect.
The beauty of Procedural Chipped Paint Material lies in their flexibility and non-destructive nature. Unlike texture-based approaches that rely on fixed images, procedural materials generate their patterns mathematically, meaning you can infinitely adjust parameters without losing quality or needing to create new texture files. This tutorial will grip Blender’s powerful node-based shader system to create a versatile chipped paint material that can be applied to any object in your scene.
Procedural Chipped Paint Materials are created using mathematical algorithms and node-based systems rather than traditional image textures. In Blender, these materials are built using the Shader Editor, where various nodes can be connected to create complex surface properties. The basic advantages of procedural materials include:
Before diving into the material creation process, it’s essential to understand Blender’s Shader Editor. This workspace provides a visual interface for creating and connecting nodes that define how light interacts with an object’s surface. The editor displays a flow chart-like structure where information flows from left to right, connecting to the Material Output node at the end.
To begin creating your chipped paint material, properly configure your Blender workspace. Start by selecting the object to which you want to apply the material, then switch to the Shading workspace or manually open the Shader Editor. This provides both the 3D viewport and the node editor, allowing you to see real-time updates as you build your material.
One of the most valuable add-ons for shader work is Node Wrangler. This built-in add-on significantly speeds up workflow by providing shortcuts for common operations. To enable it:
With Node Wrangler active, you can use shortcuts like Ctrl+T to automatically add Texture Coordinate and Mapping nodes, saving considerable time during material creation.
Begin by adding a new material to your selected object. In the Shader Editor, you’ll see a default Principled BSDF shader connected to the Material Output. This will serve as the foundation for your chipped paint material. Name your material “Chipped Paint” for easy identification.

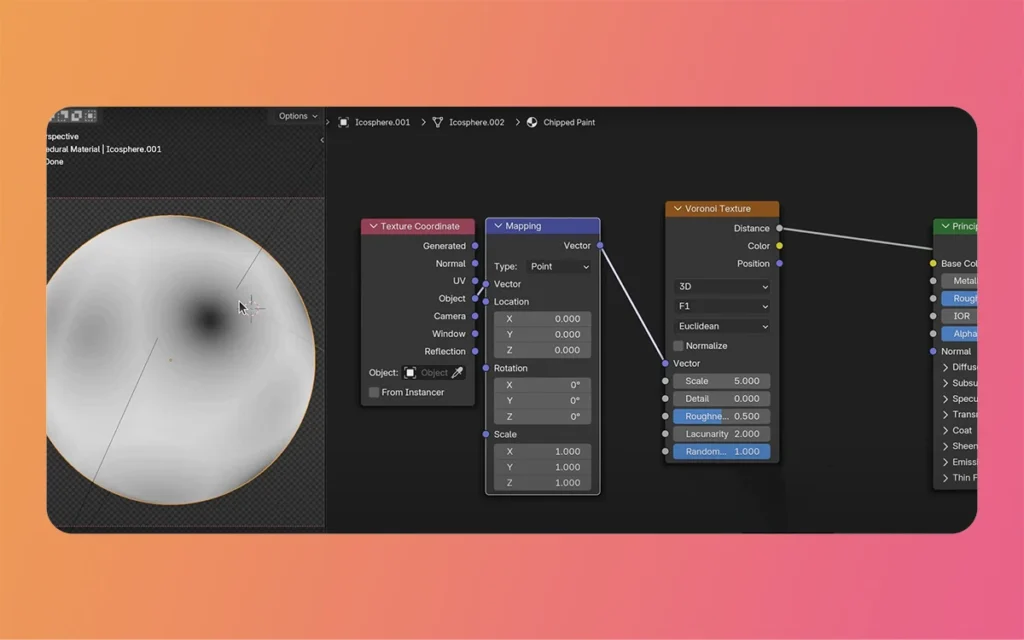

The core of our chipped paint effect relies on the Voronoi Texture node, which generates cellular patterns perfect for simulating paint chips. Add a Voronoi Texture node to your shader network and connect it through a ColorRamp node. This combination allows you to control precisely where chips appear on your surface.

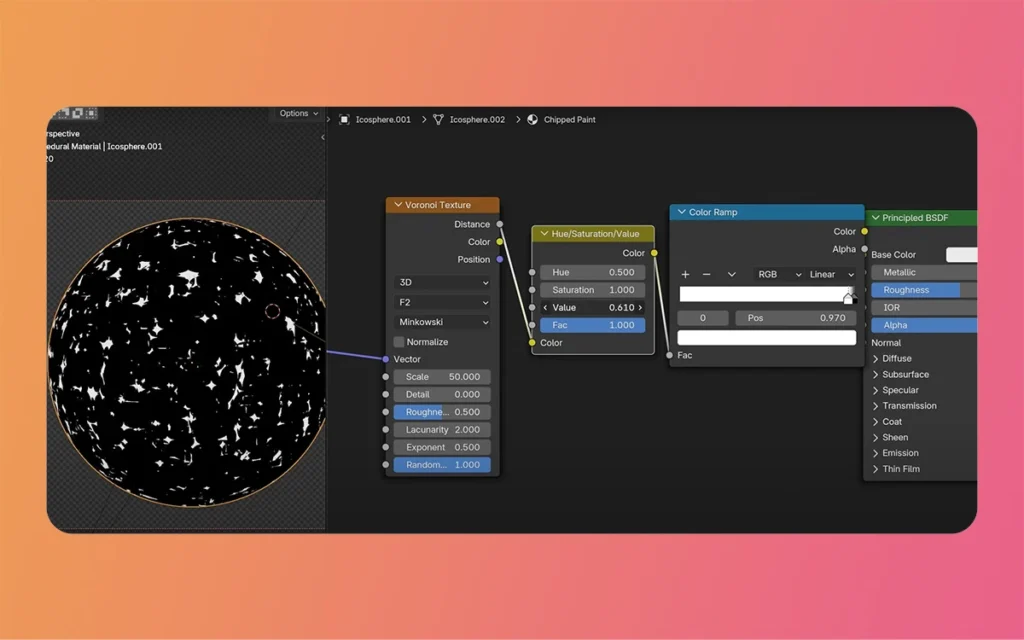

Configure the Voronoi Texture with these settings:
The F2 distance metric creates more organic, irregular patterns, while the Manhattan feature produces sharper, more angular edges—ideal for realistic paint chips.
The Scale parameter of the Voronoi Texture controls the general size of your chip pattern. Start with a value around 5-10 and adjust based on your object’s scale and desired chip density. Think of that paint chips vary in size, so don’t make the pattern too uniform.
The ColorRamp node is crucial for defining the areas where paint has chipped away. By adjusting the black and white sliders, you control the proportion of chipped versus intact paint:
Real paint chips rarely have perfectly uniform edges. To add realistic irregularity, introduce a Noise Texture node into your network. This texture will distort the Voronoi pattern, creating more organic-looking chips:
The MixRGB factor controls distortion strength—typically, values between 0.1 and 0.3 provide subtle, realistic results.
For the paint layer, create a Principled BSDF shader with appropriate settings:
Consider adding slight color variations using a Noise Texture connected to the Base Color through a MixRGB node. This simulates the natural color inconsistencies found in real paint.
The material revealed by chipped paint is often metal, though it could be wood, concrete, or another surface. For metal:
Use a Mix Shader node to blend between your paint and underlying material. Connect the ColorRamp output (from your chip pattern) to the Mix Shader’s Factor input. This creates a mask that determines which shader appears where:
To enhance realism, add physical depth to the transition between paint and exposed material:
The bump effect creates the illusion of raised paint edges and recessed chip areas without actual geometry displacement.
Paint surfaces rarely have uniform roughness. Add another layer of realism by varying the roughness across the paint surface:
This technique simulates dirt accumulation, wear patterns, and surface irregularities common in aged paint.

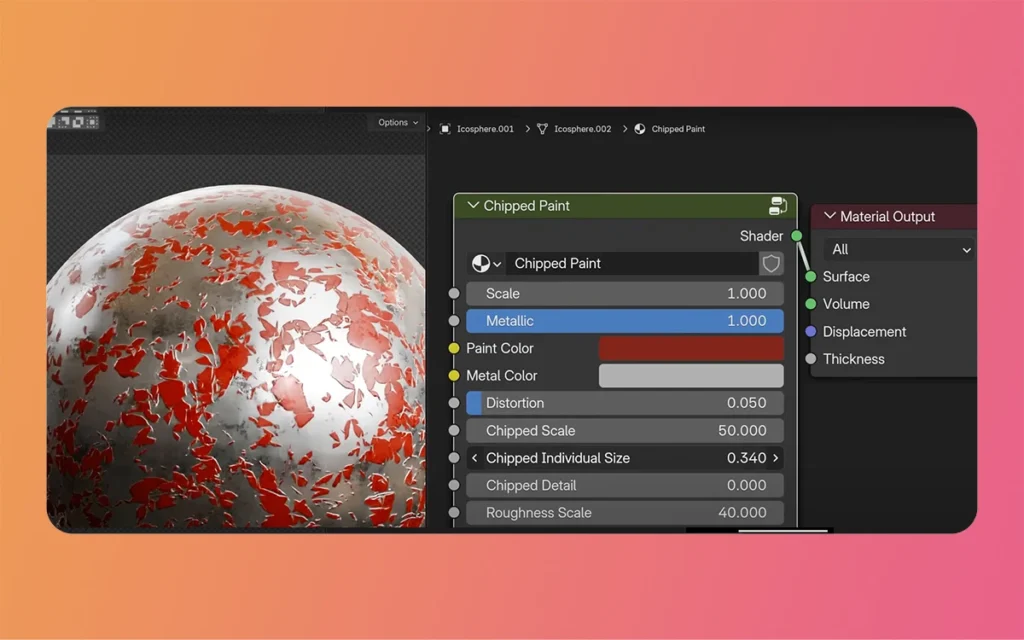

Once your material is complete, organize it into a custom node group for easy reuse and adjustment:
This approach creates a clean, professional material with intuitive controls accessible from the main shader view.
Consider exposing these essential controls:
While procedural materials offer incredible flexibility, they can impact render times. Consider these optimization strategies:
For best results with procedural materials:
Chipped paint materials excel in architectural contexts, particularly for:
In product visualization, chipped paint can:
The entertainment industry benefits from procedural chipped paint through:
| Problem | Cause | Solution |
| Chips appear too uniform | Insufficient distortion | Increase noise texture influence and MixRGB factor |
| Pattern doesn’t scale properly | Incorrect coordinate mapping | Switch to Object coordinates or adjust Mapping node scale |
| Edges look too sharp | ColorRamp settings too extreme | Adjust ColorRamp positions for softer transitions |
| Bump effect too strong | Excessive bump strength | Reduce Bump node strength value to 0.1-0.2 |
| Material looks flat | Missing roughness variation | Add noise-driven roughness variations to paint layer |
| Render times too slow | Complex node network | Simplify noise iterations or bake textures |
| Seams visible on UV-mapped objects | UV coordinate usage | Switch to Object or Generated coordinates |
| Colors appear washed out | Incorrect color space | Ensure color textures use sRGB, data textures use Non-Color |
Actual objects often have multiple paint layers. Extend the basic technique by:
Enhance realism by incorporating environmental factors:
For animated projects:
Maximize your productivity by:
Ensure professional results through:
As Blender continues to develop progress, expect:
The 3D industry is moving toward:
Creating Procedural Chipped Paint Material in Blender perfectly balances artistic control and technical efficiency. By mastering the techniques defined in this guide, you can produce highly realistic, infinitely customizable weathered surfaces that enhance any 3D project. The procedural approach saves time and storage space and provides the flexibility to adapt materials to any scenario or requirement.
Achieving photorealistic results requires practice and experimentation. Start with the basic setup described here, then gradually incorporate advanced techniques as your Follower’s skill level deepens. Pay attention to actual references, as observing actual chipped paint patterns will inform your artistic decisions and lead to more convincing results.
Whether you’re working on architectural visualization, product design, or entertainment projects, these Procedural Chipped Paint Materials will become an integral part of your Blender toolkit. The initial time investment in learning these techniques pays dividends through increased efficiency, superior quality, and the satisfaction of creating truly professional materials from scratch.
As you continue developing your skills, don’t hesitate to experiment with variations and combinations of the techniques presented here. The beauty of procedural materials lies in their endless possibilities—each project presents new opportunities to refine and expand upon these foundational concepts. With dedication and creativity, you’ll soon be producing chipped paint effects that rival any professional production, all while maintaining the complete control and flexibility that only Procedural Chipped Paint Material can provide.
